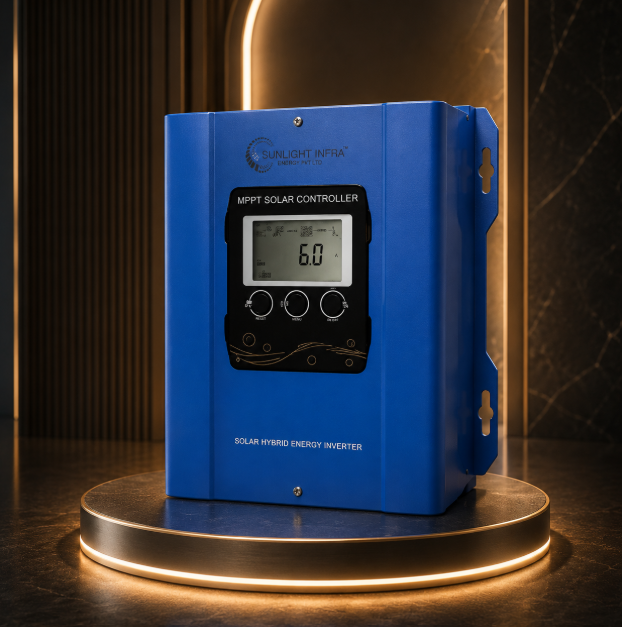

Solar Controller
Solar Controller
Our intelligent MPPT Controller is designed for Water Pumping, On-Grid, Hybrid and Off-Grid solar applications, maximizing solar energy utilization while delivering high efficiency, reliable performance, and advanced system protection.
Features
High Conversion Efficiency
Converts maximum solar energy into usable electricity with minimal losses.
Pure Sine Wave Output
Delivers stable, clean power for sensitive appliances and electronic devices.
Advanced Safety Protection
Integrated protection against overload, short circuit, overheating, and voltage fluctuations.
Smart Monitoring
Monitor system performance and energy generation in real time.
Solar Optimized
Designed to maximize power generation from your solar PV system.
Reliable & Energy Efficient
Built for long-lasting performance with lower energy losses and maintenance.
Uses / Applications
Residential Homes
Reliable backup power.
Commercial Buildings
Efficient energy management.
Industrial Units
Stable power conversion.
Educational Institutes
Continuous power supply.
Hospitals
Reliable energy backup.
Hotels
Smart energy solutions.
Agriculture
Solar-powered operations.
Solar Power Plants
Maximum energy output.
MPPT Solar Pump Controller Specifications
Controller Type
MPPT (Maximum Power Point Tracking)
Input Power
0.75 HP – 50 HP (Model Dependent)
Input Voltage
150V – 900V DC
Output Voltage
230V AC / 415V AC
Output Frequency
0 – 50/60 Hz
MPPT Efficiency
Up to 99%
System Efficiency
≥98%
Motor Compatibility
AC Induction & BLDC Motors
Applications
Water Pumping, On-Grid, Hybrid & Off-Grid
Protection
Over Voltage, Over Load, Dry Run, Short Circuit & Over Temperature
Cooling
Intelligent Air Cooling
Display
LCD / LED Display
Communication
RS485 / Modbus (Optional)
Protection Grade
IP54 Standard / IP65 Optional
Operating Temperature
-10°C to +60°C
Installation
Wall Mounted
